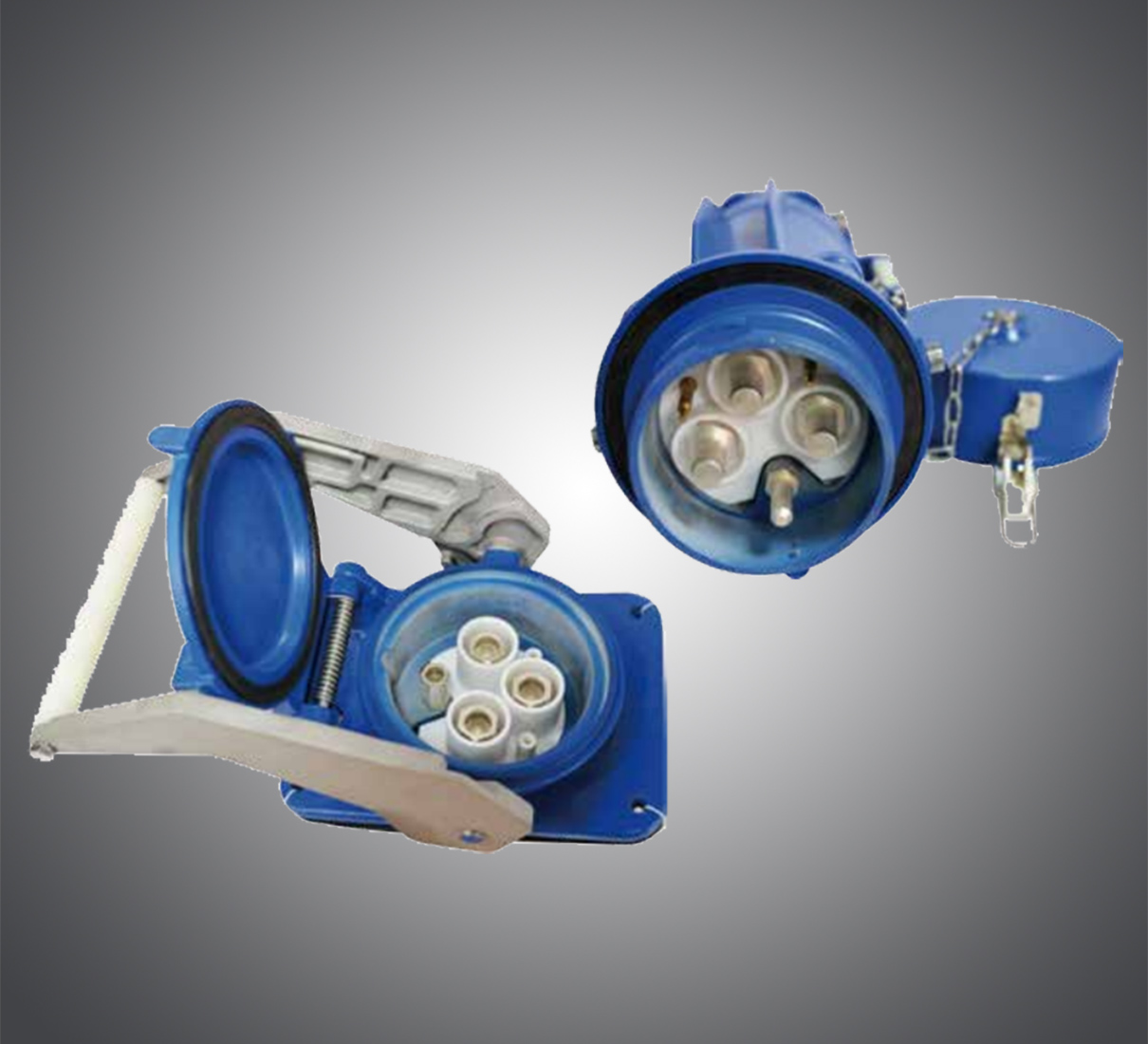

JL09 (500A,12000V)

Maximum current: 500A, maximum voltage: 12,000V (4 core).
Housing is made of cast aluminum; sealing is made of chloroprene rubber; fasteners are made of stainless steel.
Monolithic insulators are made of nylon PA6. Insulators for power supply and power contact inside plug and socket are interchangeable.
The contact material is silver-plated copper alloy which highest ambient temperature is 200℃.
The cable terminals are press-fit and removable.
The standard configuration is two guided contacts, and the ground contact ensures ground continuity.
The power supply contacts are equipped with patented internal cage bushings for easy use.
Products are corrosion resistance and with good insulation. Protection grade is IP66.
Got the China Classification Society certification.



CONNOTEC power connectors are widely used in: ports, docks, ships, power plants, railways, tunnels, mines and other regions.

CONNOTEC power connectors could be used with CONNOTEC shore connection system.
