    • JL-S

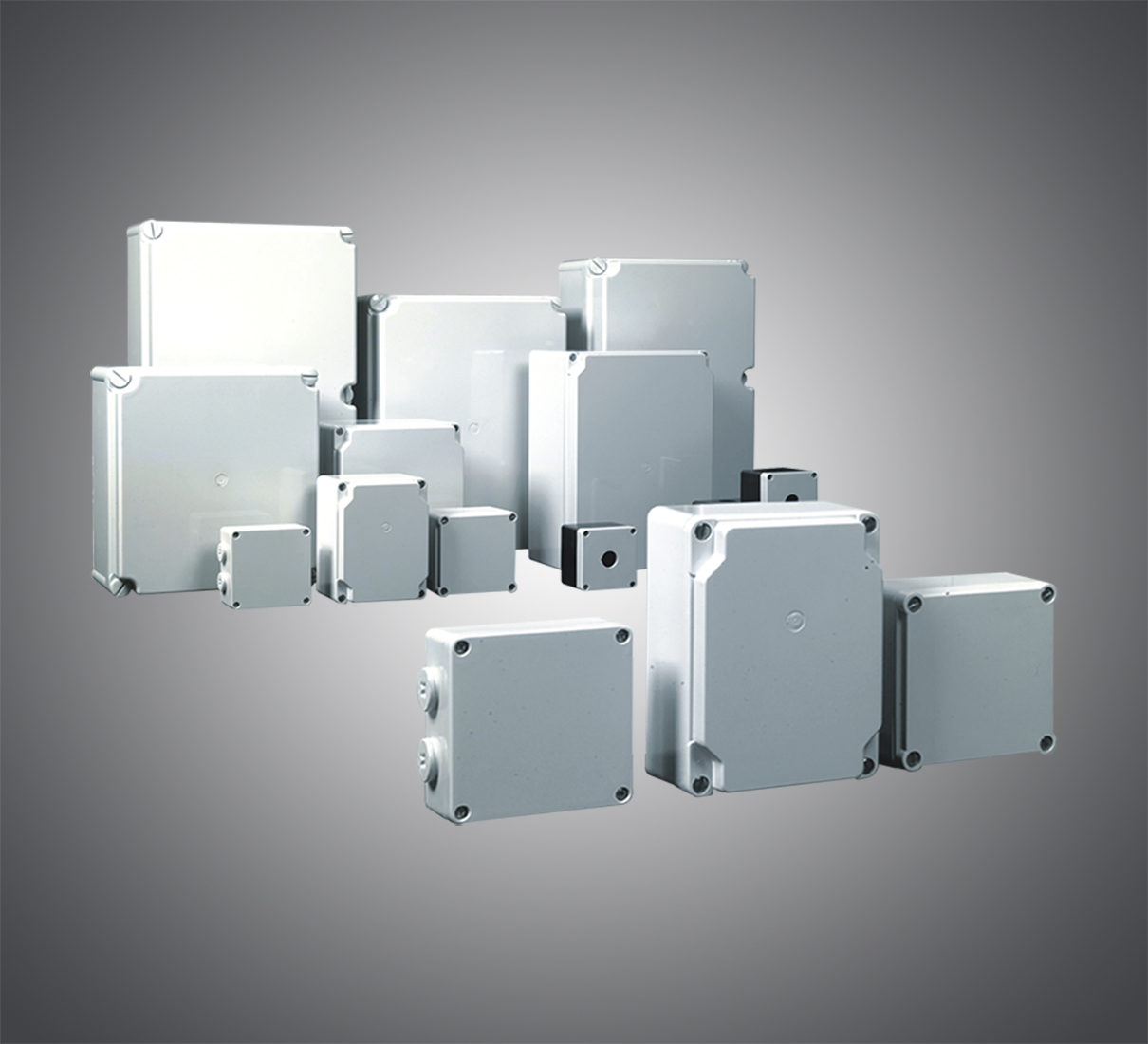

    ◇  Enclosures are made by high-strength ABS, PC materials, suitable for indoor and outdoor various occasions.
    ◇  According to the size of enclosures, the thickness of the enclosures are between 4-6mm. The strength level is IK08.
    ◇  Enclosures are anti-corrosion and have good insulation. The protection grade is IP67.

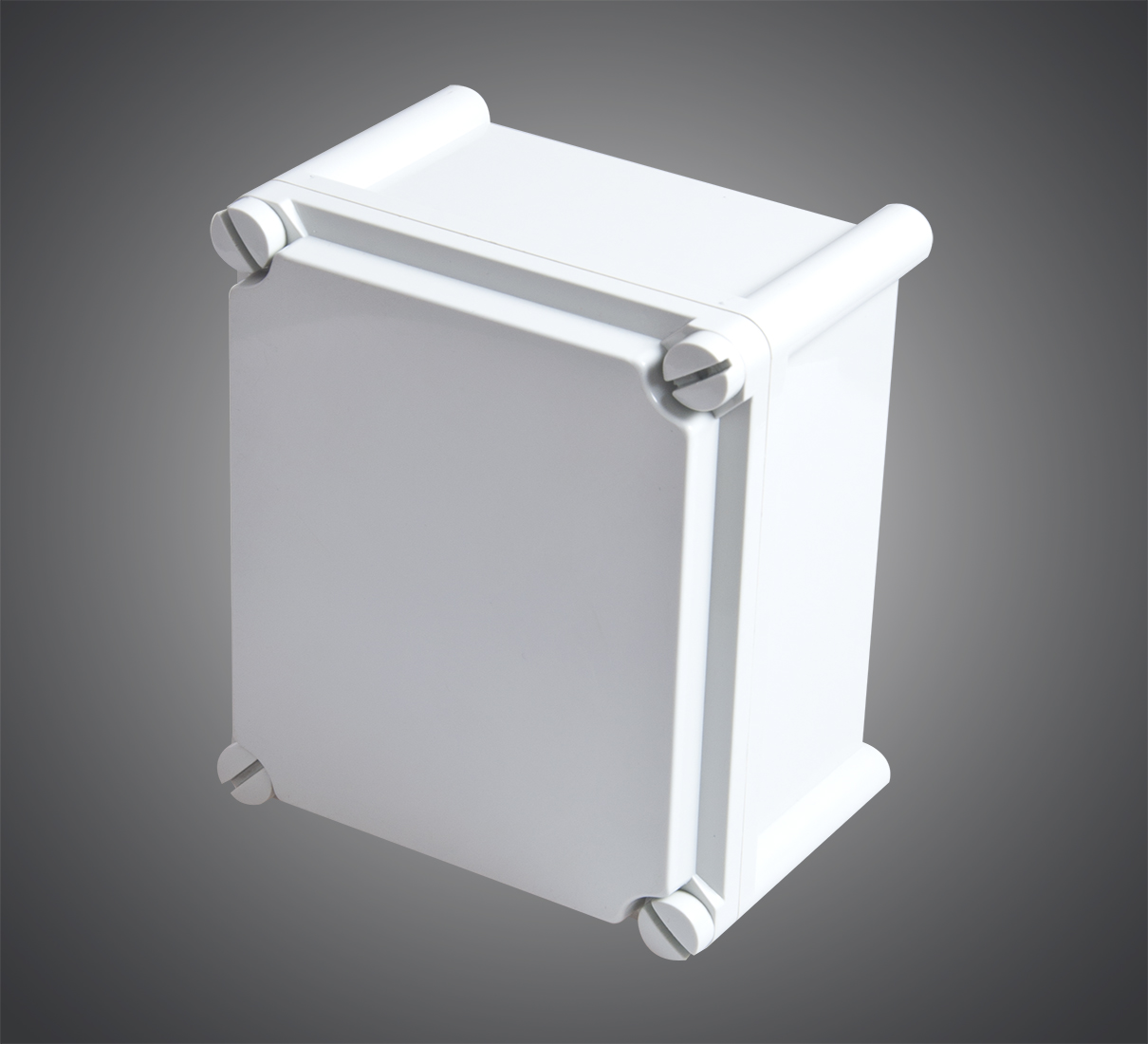

    ◇  Enclosures are connectted by 4-6 plastic screws which are not easy to fall off. They could be installed on the wall directly by the bottom of the brass mounting holes.
    ◇  Ambient temperature: ABS:-20℃~+85℃; PC:-40℃~+120℃.
    ◇  Flame retardant: V-2 grade.
    ◇  Certification: ISO9001, ISO14001, OHSAS18001, ROHS, TUV, CE, UL, CU-TR, CCC.




    CONNOTEC screw type enclosures are widely used as:
    ◇ Maintenance boxes, distribution boxes, terminal boxes in the fields of electrical equipment, communications, fire protrction, machinery, automation, instrumentation, etc.
    ◇ Control boxes in the fields of rail transportation, shipping, petrochemical industry, large factories, port and docks, water treatment, mining, environmental protection, etc.
    ◇ Collection boxes, combiner boxes in the fields of wind energy, solar energy, hydropower stations, etc.

    The accessories of CONNOTEC hinge type enclosure include: window type, waterproof gland, industrial socket.
